Chemically-resistant diaphragm pump hycoLAB PB-45hyco GREENtec Label
Chemically-resistant diaphragm pump hycoLAB PB-45
hyco GREENtec Label

Chemically-resistant
diaphragm pump
hycoLAB
for the evacuation of aggressive solvent and acid vapors

Chemically-resistant diaphragm pump hycoLAB PB-45
Single stage
<75 mbar
Free flow
63 l/min
Two stages
<8 mbar
Free flow
38 l/min
Ambient temperature
+ 10 °C bis + 40 °C
Maximum gas temperatur
+ 60 °C
Operating mode
S1
Protection class
IP54
Iso classification
F
Weight
10 kg
Chemically-resistant diaphragm pump hycoLAB PB-45

hycoLAB

hyco Vakuumtechnik's new chemical-resistant hycoLab vacuum pump is a dry-running diaphragm pump intended for use with chemicals. With it, aggressive acid and solvent vapors can be pumped and evacuated.

In order to achieve chemical resistance, resistant materials such as PTFE and Kalrez have been used in the production area. The pump can be used in all laboratory applications where acid and solvent vapors are to be evacuated. This can be e.g. drying processes, filtrations or distillations.

Pumpdescription

  • Resistant to aggressive solvent and acid vapors
  • Chemically resistant
  • Diaphragm elastomer with PTFE support
  • Valves made of Kalrez
  • Media-carrying components made of PTFE with carbon fiber reinforcement
  • Wipeable, portable, on-off switch
  • Favorable design weight distribution
  • Good ratio of capacity to weight
  • GREENtec - good for the environment - oil-free and water-free vacuum technology

Interested? Send a request to hyco directly!
Vacuum

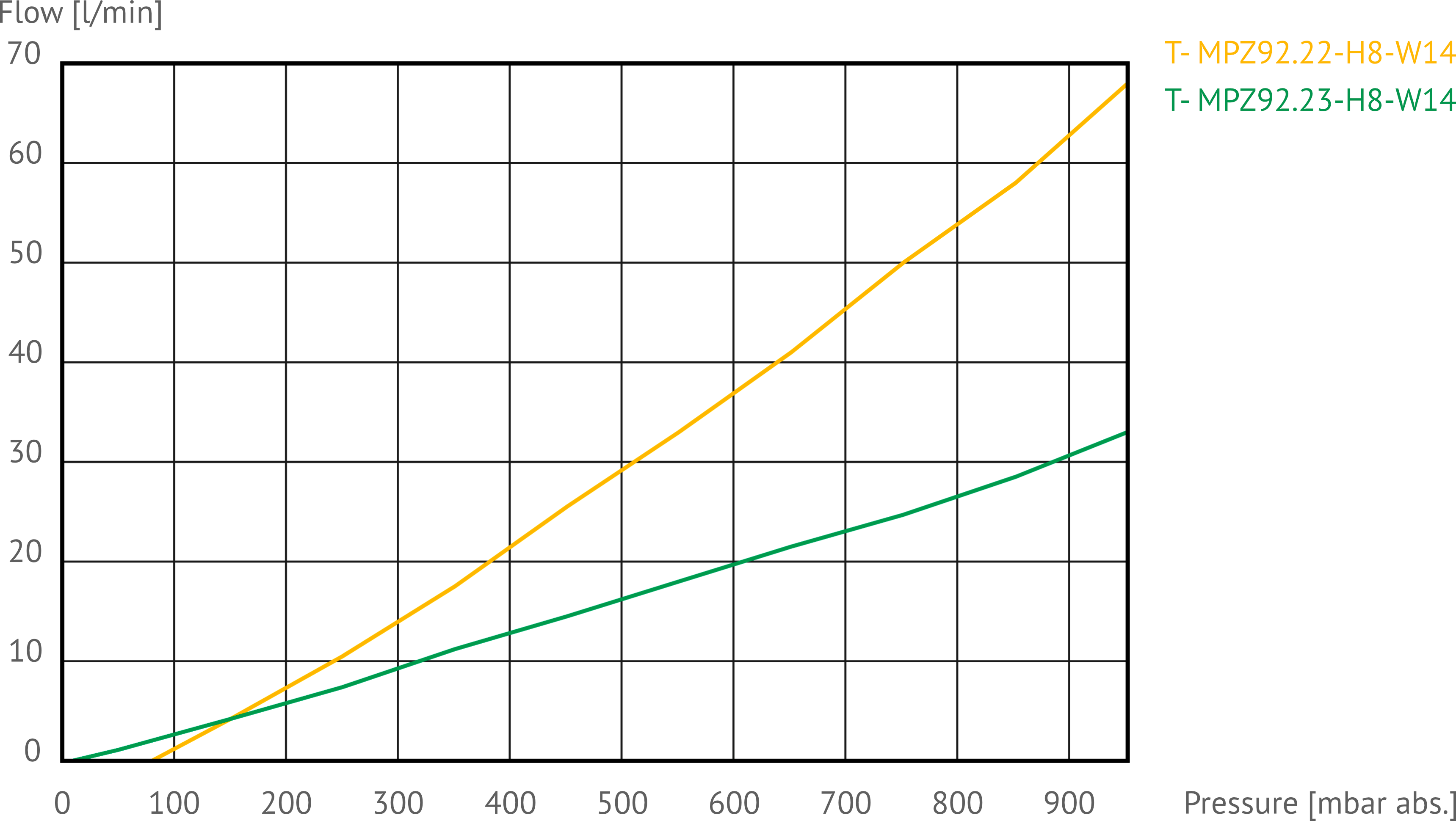

Graph of the chemically-resistant diaphragm pump hycoLAB PB-45
